Tractor lifter

Product Features

♦ Compact structure, convenient maintenance
♦ High durability, power range 25-75 horsepower
♦ Descent self-locking, buffer function

Technical parameters

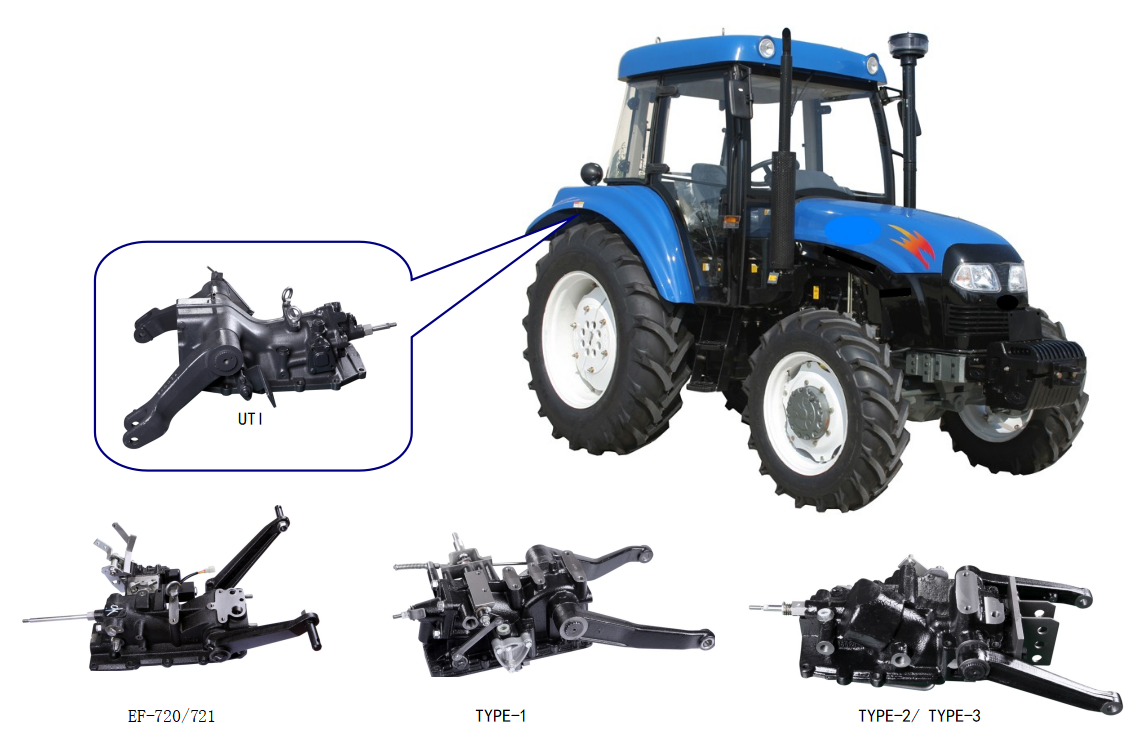

Model	Applicable power (horsepower)	Lifting angle	Overflow pressure	Operation flow	Suspension type
EF-720	25	-5.5°～ 60°	15.2 0.5 MPa	18 L/min	Rear three-point suspension
EF-721	25	-5.5°～ 60°	15.2 0.5 MPa	18 L/min	Ibid.
TYPE-1	22～25	-17°～ 49°	15.2 0.5 MPa	18 L/min	Ibid.
TYPE-2	28～36	-16°～ 47°	15.2 0.5 MPa	30 L/min	Ibid.
TYPE-3	28～36	-6.6°～ 57°	15.2 0.5 MPa	18 L/min	Ibid.
LC-001	30	-9°～ 57°	20 MPa	6～10 L/min	Ibid.
LC-004	40～45	-24°～ 50°	20 MPa	6～10 L/min	Ibid.
UT1	75	-32°～ 45°	15±0.5 MPa	16.6～32 L/min	Ibid.
